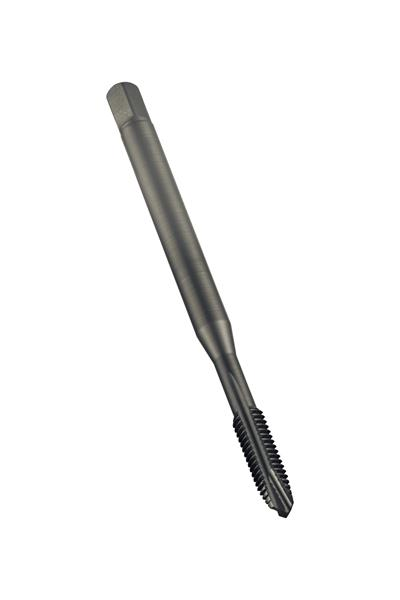

#5-40 UNC Carbide (HSS-E) Steam Oxide Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973957
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 5 with 40 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Inches | 2.2047 |
|---|---|
| Brand | Dormer |
| Overall Length Metric | 56 mm |
| Material | HSS Cobalt Powdered Metal |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
