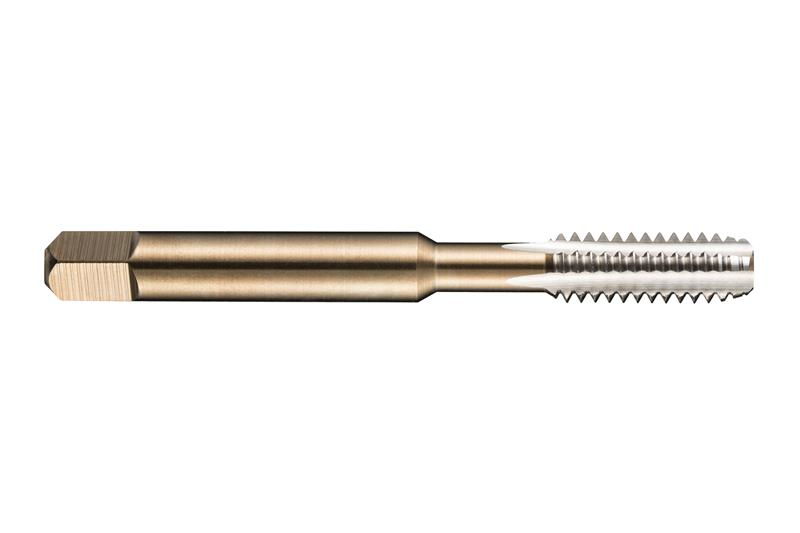

7/16-20 UNF HSS Bright Finish RH 2B/3B Semi-Bottoming Chamfer Straight Flute Hand Tap
- Item Code: 5974175
- Brand: Dormer
- Unit Size: 1
Description
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 7/16" with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3230" shank and 0.2420" square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Fractional | 3-5/32" |
| Overall Length Metric | 80.17 mm |
| Number of Flutes | 4 |
| Coating/Finish | Bright |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 3.1563" |
| Cutting Direction | Right |
| Material | HSS |
