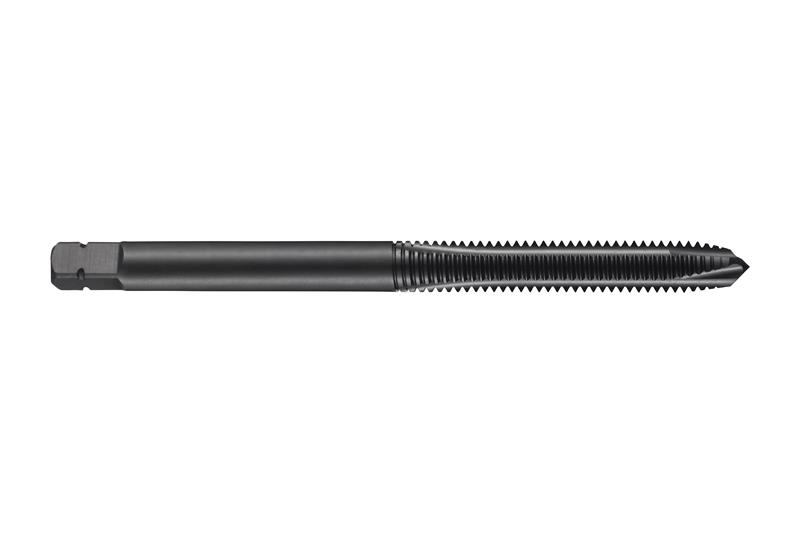

2-56 UNC Cobalt (HSS-E) Black Oxide RH 3 Flutes Plug Chamfer Spiral Point Tap
- Item Code: 5974319
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 2 with 56 TPI and 2B class of fit, dimensions according to ISO 529 standard with 2.8mm shank and 2.24mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Metric | 44.5 mm |
|---|---|
| Brand | Dormer |
| Coating/Finish | Steam Tempered |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
| Overall Length Inches | 1.752 |
| Number of Flutes | 2 |
