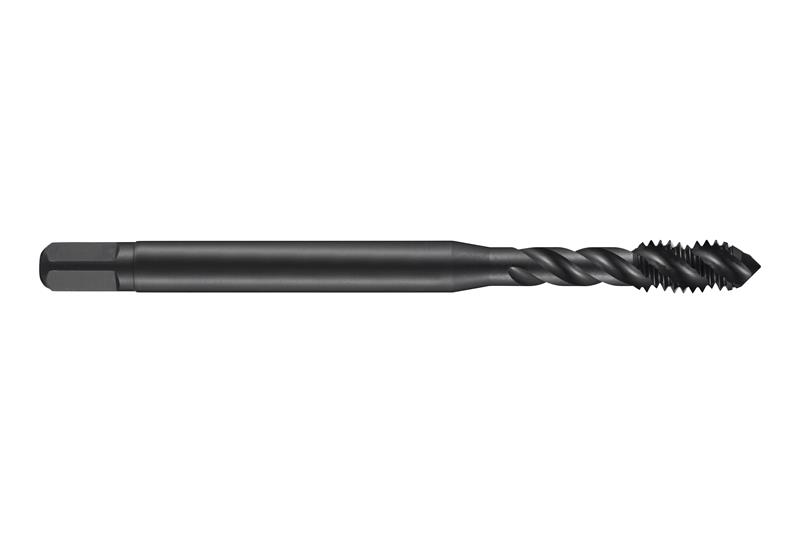

7/8-9 UNC Cobalt (HSS-E) Black Oxide RH 4 Flutes Plug Chamfer Spiral Point Tap
- Item Code: 5974364
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 7/8" with 9 TPI and 2B class of fit, dimensions according to ISO 529 standard with 16.0mm shank and 12.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Metric | 118 mm |
|---|---|
| Overall Length Inches | 4.6457 |
| Brand | Dormer |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Coating/Finish | Steam Tempered |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
