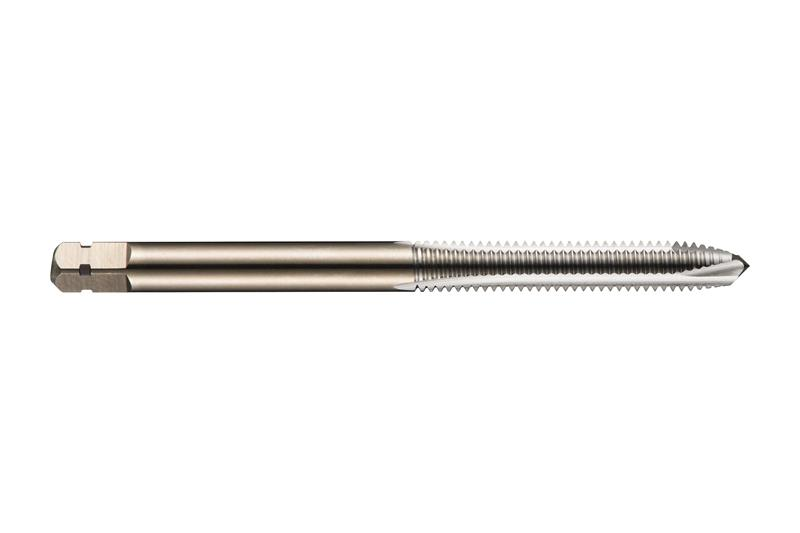

3 mm x 0.50 Coarse Cobalt (HSS-E) Steam Oxide Finish 3 Flute RH 45 Deg. Semi-Bottoming Spiral Flute Tap
- Item Code: 5974380
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications
Tech Specs
Back To Top| Coating/Finish | Steam Tempered |
|---|---|
| Overall Length Metric | 48 mm |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Number of Flutes | 3 |
| Material | HSS Cobalt Powdered Metal |
| Brand | Dormer |
| Overall Length Inches | 1.8898 |
