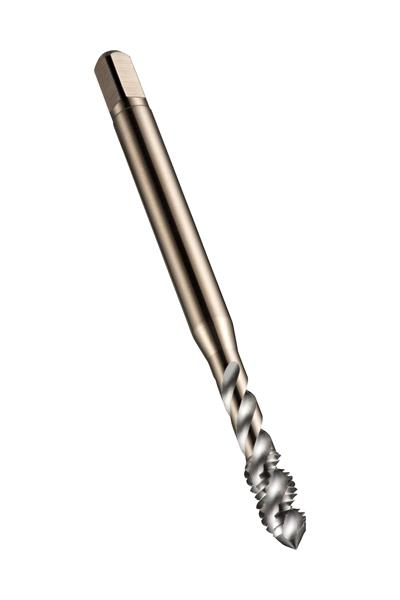

18 mm x 2.50 mm Coarse Cobalt (HSS-E) Gold Finish 4 Flute RH 45 Deg. Semi-Bottoming Spiral Flute Tap
- Item Code: 5974399
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, powder metallurgical HSS-E with bright finish and 45? helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Number of Flutes | 4 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Coating/Finish | Bright |
| Overall Length Inches | 4.4094 |
| Overall Length Metric | 112 mm |
