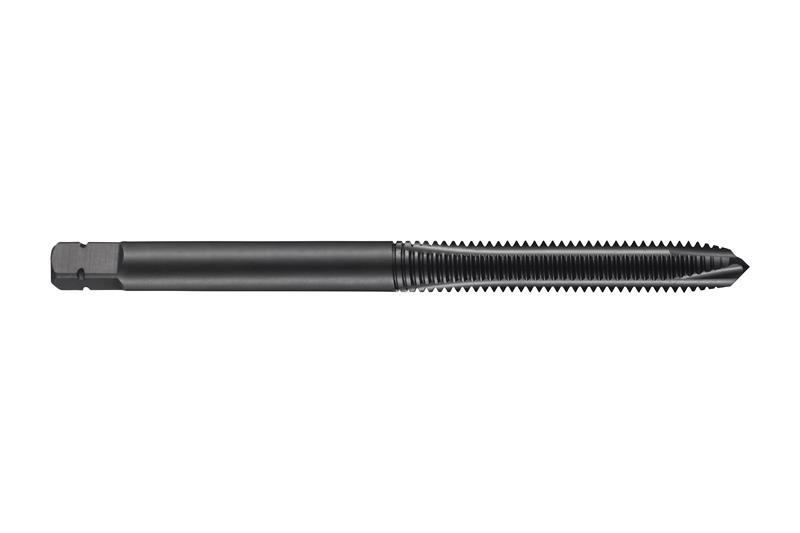

6 mm x 1 mm Coarse Cobalt (HSS-E) Bronze Finish 3 Flute RH Plug Chamfer Spiral Flute Tap
- Item Code: 5974469
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.2550" shank and 0.1910" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Fractional | 2-1/2" |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Inches | 2.5" |
| Number of Flutes | 2 |
| Overall Length Metric | 63.5 mm |
