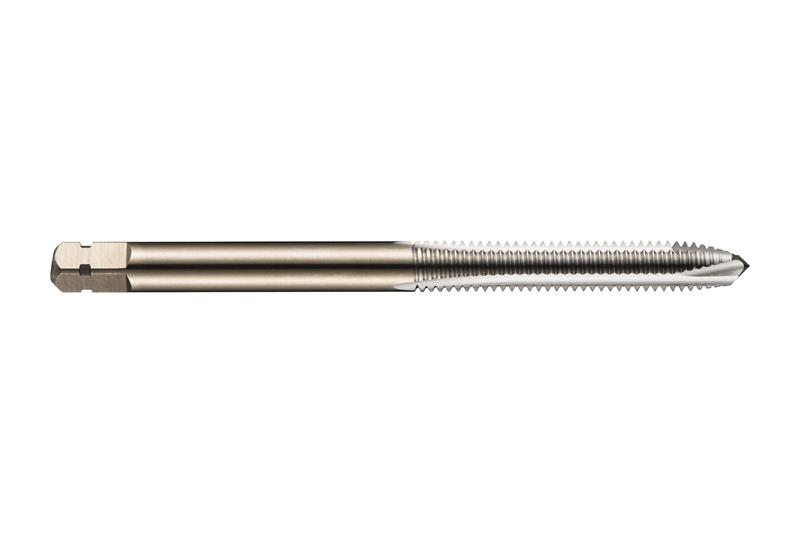

9/16 UNF Cobalt (HSS-E) Gold Finish H3 3 Flute 3B Plug Chamfer Spiral Point Tap
- Item Code: 5974561
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 9/16" with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4290" shank and 0.3220" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Inches | 3.5938" |
|---|---|
| Overall Length Metric | 91.28 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Material | HSS Cobalt Powdered Metal |
| Overall Length Fractional | 3-19/32" |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
