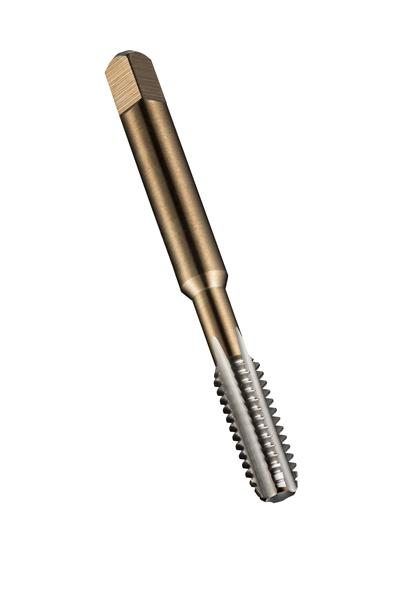

M10 x 1.50 mm Metric Coarse 6H HSS Bright Finish Straight 3 Flute Taper Chamfer Machine Tap

  • Item Code: 5975273
  • Brand: Dormer
  • Unit Size: 1

Description

Straight flute hand tap NO1 with a 6-8xP taper lead, for ISO-Metric thread M2 with 0.45 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5mm shank and 2.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.

Must Order in Quantities of 12

Features Tech Specs

Features

Back To Top
    • Taper chamfers also know as starter taps have a long chamfer and require a less aggressive cutting action.  They have 7 to 10 threads.
    • High Speed Steel  provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
    • Bright provides a smooth, polished finish on the tool.  It increases chip flow in softer materials such as aluminum, wood and plastic.

Tech Specs

Back To Top
Thread Standard Ground/UNC
Cutting Direction Right Hand
Thread Size M10 x 1.50 mm
Material High Speed Steel
Brand Dormer
Coating/Finish Bright
Number of Flutes 3
Chamfer Style Taper
