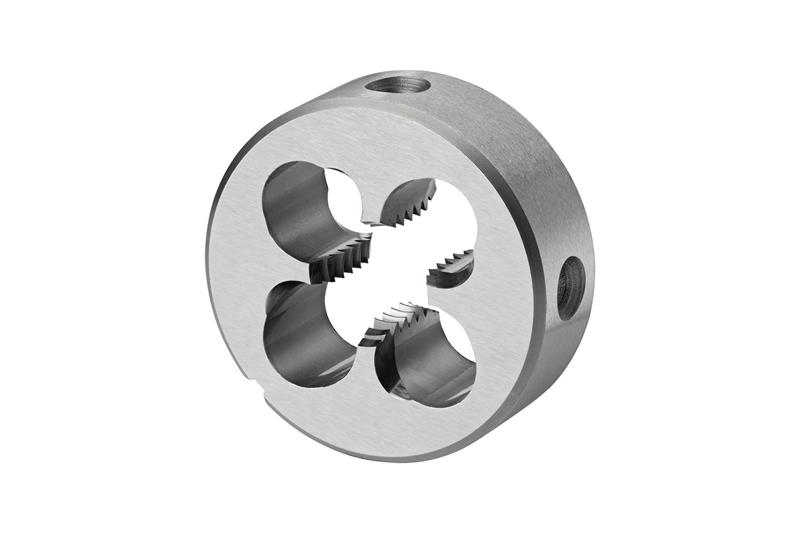

#8-32 UNC HSS Bright Finish RH Gun Nosed Die
- Item Code: 5977858
- Brand: Dormer
- Unit Size: 1
Description
Solid round die with a gun nose, for Unified National Coarse thread UNC 8 with 32 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 7mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Thread Size Inch | #8-32 |
|---|---|
| Coating/Finish | Bright |
| Material | High Speed Steel |
| Overall Length Inches | 0.2756" |
| Brand | Dormer |
| Overall Length Metric | 7 mm |
| Cutting Direction | Right |
