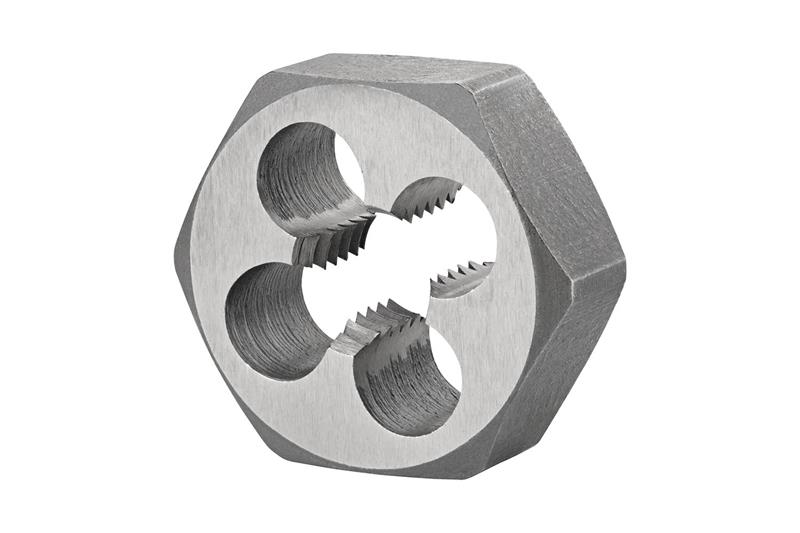

M14 x 2.00 HSS Bright Finish RH Die Nut
- Item Code: 5977875
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric thread M14 with 2.00 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 36mm width across flat and 14mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Material | High Speed Steel |
|---|---|
| Thread Size Metric | M14 x 2.00 |
| Coating/Finish | Bright |
| Overall Length Inches | 0.5512" |
| Brand | Dormer |
| Overall Length Metric | 14 mm |
| Cutting Direction | Right |
