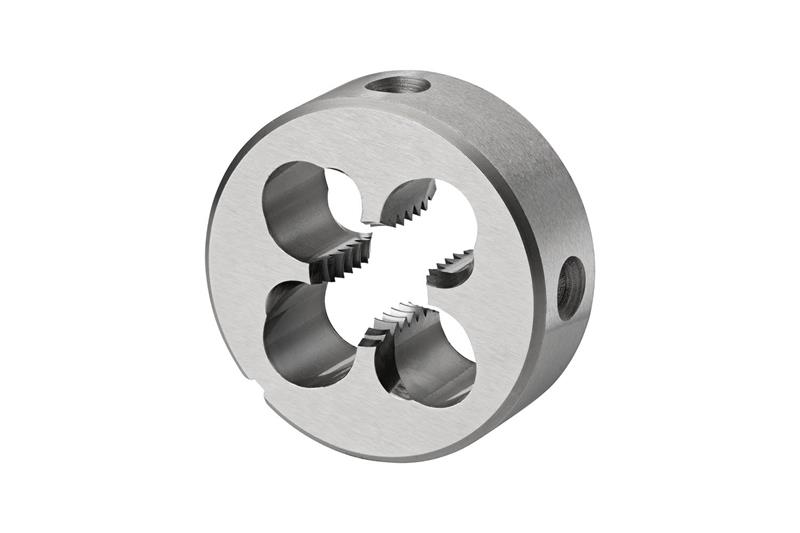

#10-32 UNF HSS Bright Finish RH Gun Nosed Die
- Item Code: 5977876
- Brand: Dormer
- Unit Size: 1
Description
Solid round die with a gun nose, for Unified National Fine thread UNF 10 with 32 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 7mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Coating/Finish | Bright |
| Overall Length Inches | 0.2756" |
| Brand | Dormer |
| Overall Length Metric | 7 mm |
| Material | High Speed Steel |
| Thread Size Inch | #10-32 |
