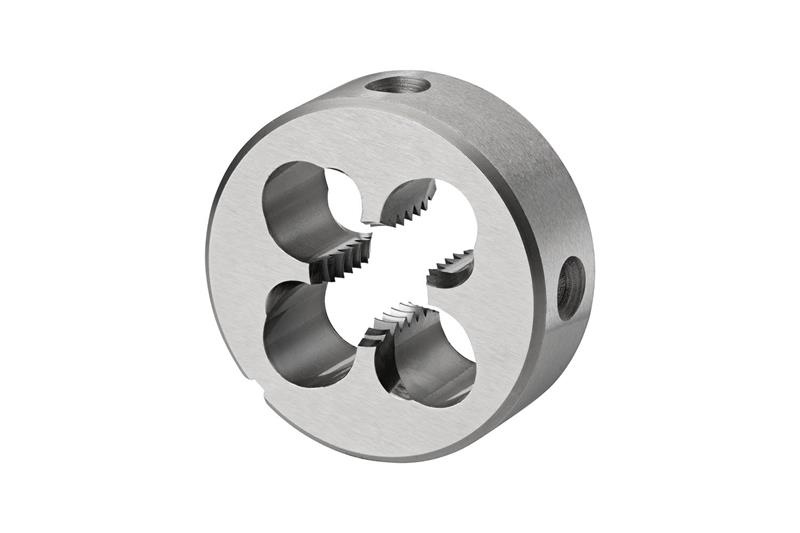

3/4-16 in. UNF HSS Bright Finish RH Gun Nosed Die
- Item Code: 5977879
- Brand: Dormer
- Unit Size: 1
Description
Solid round die with a gun nose, for Unified National Fine thread UNF 3/4" with 16 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Material | High Speed Steel |
| Cutting Direction | Right |
| Overall Length Inches | 0.5512" |
| Thread Size Inch | 3/4"-16 |
| Overall Length Metric | 14 mm |
| Brand | Dormer |
