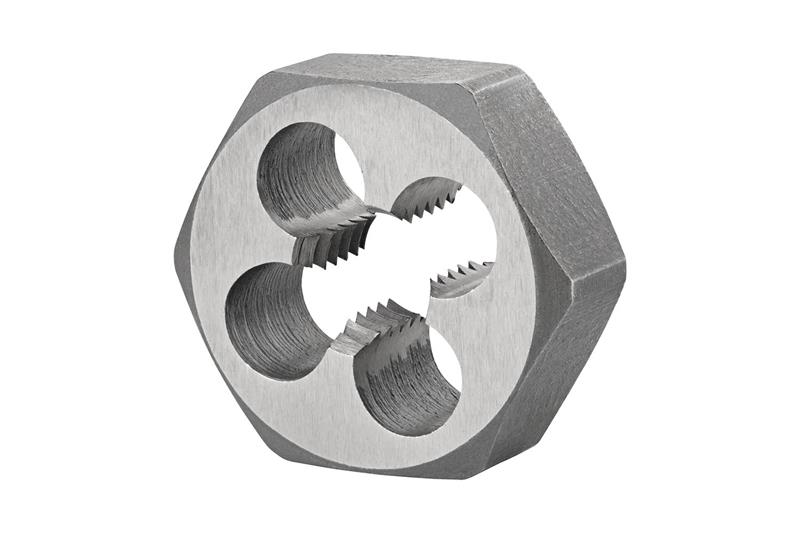

M10 x 1.25 Fine HSS Bright RH Rethreading Hex Die Nut
- Item Code: 5977934
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric Fine thread M10 with 1.25 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 0.9200" width across flat and 3/8" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Fractional | 3/8" |
|---|---|
| Cutting Direction | Right |
| Overall Length Metric | 9.53 mm |
| Coating/Finish | Bright |
| Material | High Speed Steel |
| Brand | Dormer |
| Overall Length Inches | 0.375" |
| Thread Size Metric | M10 x 1.25 |
