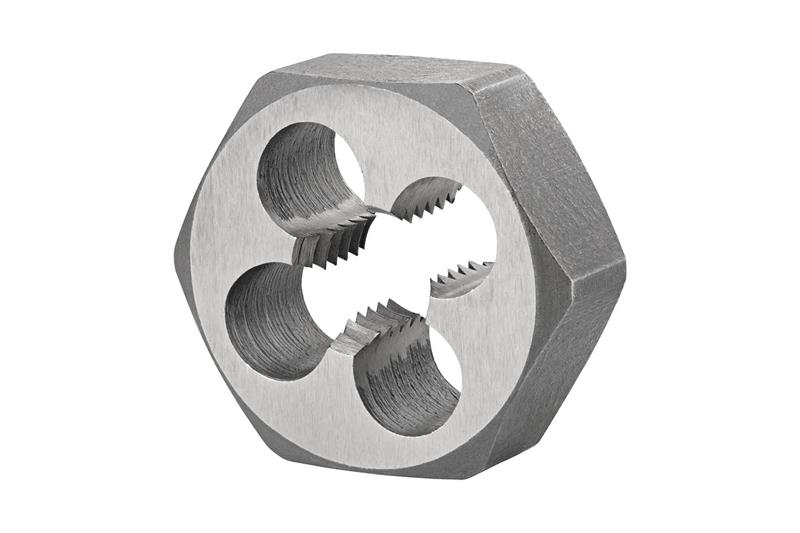

M16 x 1.50 Fine HSS Bright RH Rethreading Hex Die Nut
- Item Code: 5977946
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric Fine thread M16 with 1.50 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.3000" width across flat and 5/8" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Material | High Speed Steel |
|---|---|
| Brand | Dormer |
| Overall Length Inches | 0.625" |
| Thread Size Metric | M16 x 1.50 |
| Overall Length Fractional | 5/8" |
| Overall Length Metric | 15.88 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
