M22 x 1.50 Fine HSS Bright RH Rethreading Hex Die Nut
- Item Code: 5977954
- Brand: Dormer
- Unit Size: 1
Description

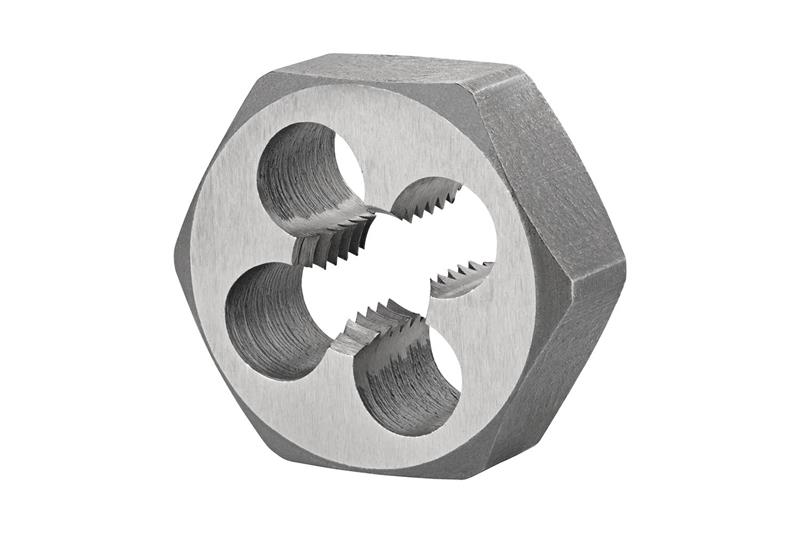

Hexagon die nut, for ISO-Metric Fine thread M22 with 1.50 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.6700" width across flat and 13/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Fractional | 13/16" |
|---|---|
| Overall Length Inches | 0.8125" |
| Material | High Speed Steel |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Metric | 20.64 mm |
| Thread Size Metric | M22 x 1.50 |
| Brand | Dormer |
