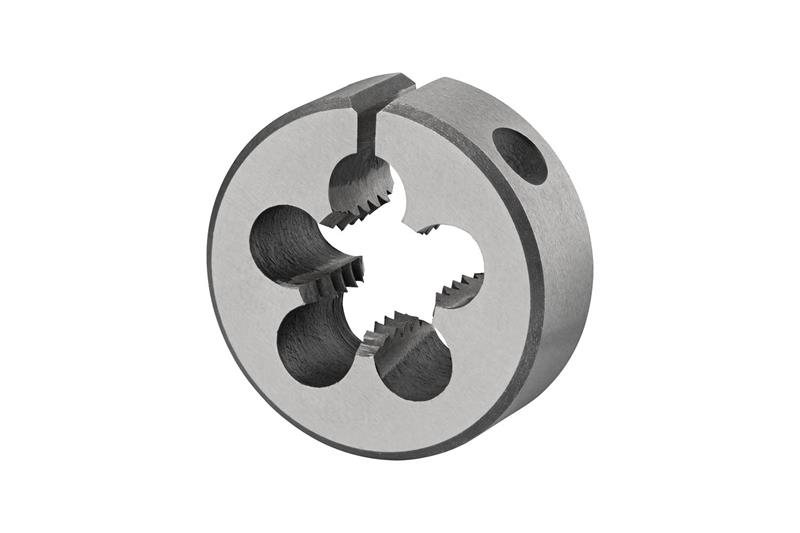

1-1/4-7 in. UNC HSS Bright RH Adjustable Round Split Threading Die
- Item Code: 5977968
- Brand: Dormer
- Unit Size: 1
Description
Adjustable circular split die, for Unified National Coarse thread UNC 1.1/4" with 7 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 3" outside diameter and 7/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Metric | 22.23 mm |
|---|---|
| Coating/Finish | Bright |
| Brand | Dormer |
| Overall Length Fractional | 7/8" |
| Material | High Speed Steel |
| Overall Length Inches | 0.875" |
| Thread Size Inch | 1-1/4"-7 |
| Cutting Direction | Right |
