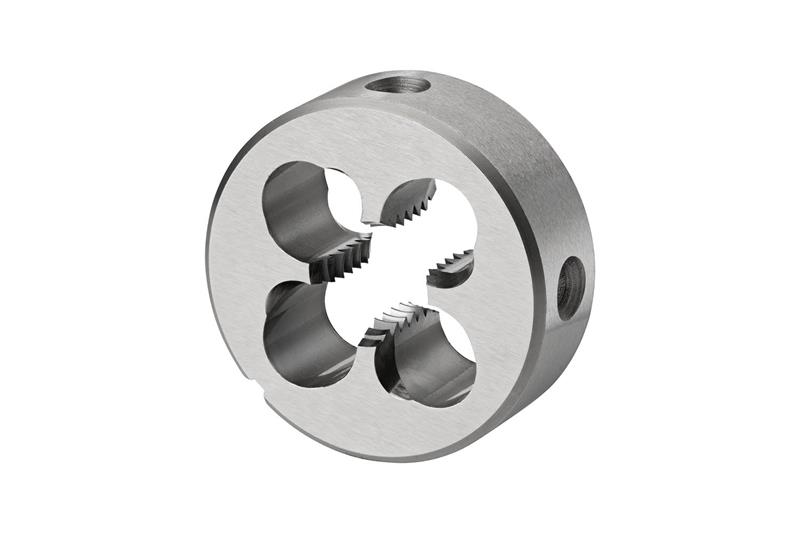

M22 x 2.50 mm HSS Bright Finish RH Gun Nosed Die
- Item Code: 5978293
- Brand: Dormer
- Unit Size: 1
Description
Solid round die with a gun nose, for ISO-Metric thread M22 with 2.50 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 55mm outside diameter and 22mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Cutting Direction | Right |
| Thread Size Metric | M22 x 2.50 |
| Overall Length Inches | 0.8661" |
| Brand | Dormer |
| Material | High Speed Steel |
| Overall Length Metric | 22 mm |
