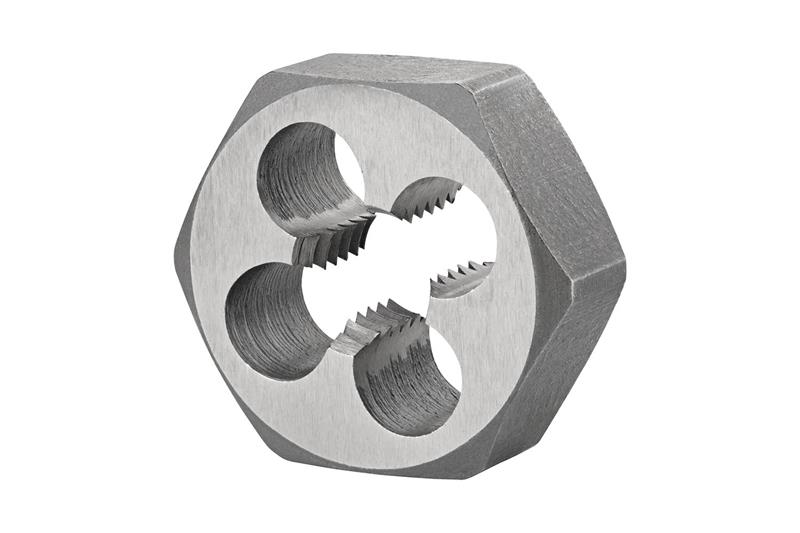

M20 x 2.50 HSS Bright RH Rethreading Hex Die Nut
- Item Code: 5978482
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric thread M20 with 2.50 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.4800" width across flat and 11/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Material | High Speed Steel |
| Overall Length Inches | 0.6875" |
| Overall Length Metric | 17.46 mm |
| Coating/Finish | Bright |
| Brand | Dormer |
| Thread Size Metric | M20 x 2.50 |
| Overall Length Fractional | 11/16" |
