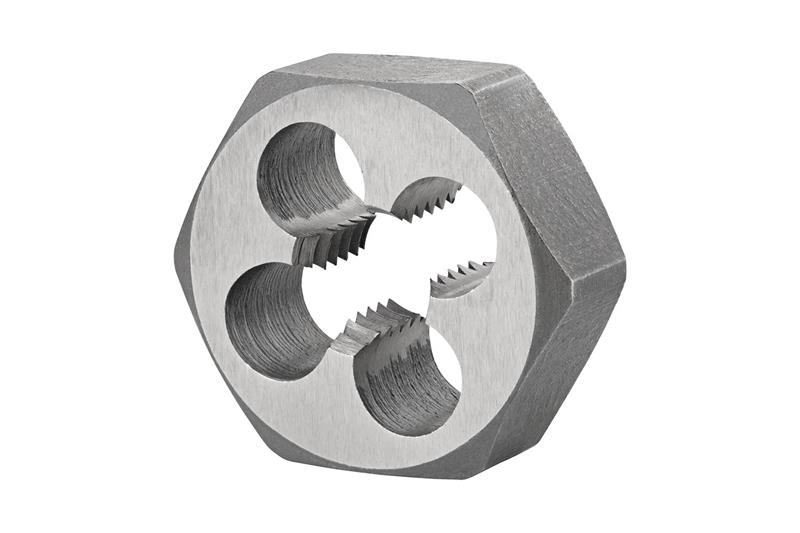

M36 x 4.00 HSS Bright RH Rethreading Hex Die Nut
- Item Code: 5978505
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric thread M36 with 4.00 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 2.7600" width across flat and 1.1/4" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Inches | 1.25" |
|---|---|
| Material | High Speed Steel |
| Overall Length Fractional | 1-1/4" |
| Brand | Dormer |
| Thread Size Metric | M36 x 4.00 |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Metric | 31.75 mm |
