M12 x 1.75 mm Carbide (HSS-E) Bright Finish RH Gun Nosed Die
- Item Code: 5978529
- Brand: Dormer
- Unit Size: 1
Description

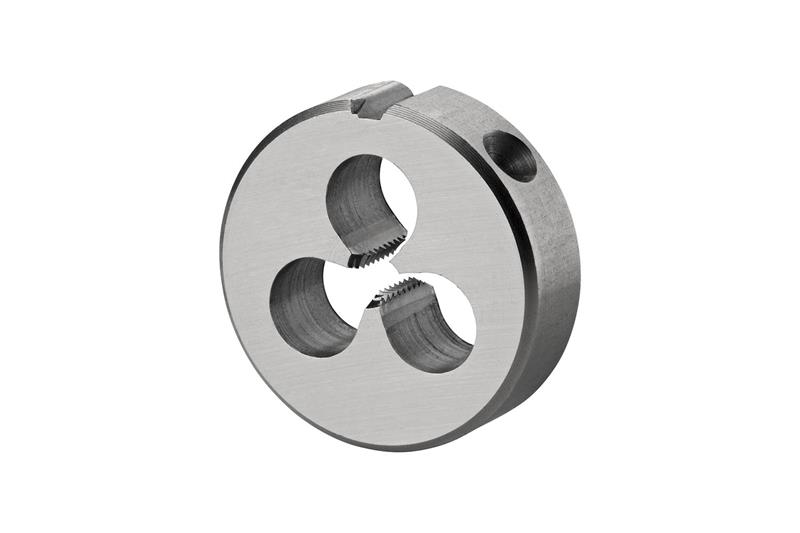

Solid round die with a gun nose, for ISO-Metric thread M12 with 1.75 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 14mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron
Tech Specs
Back To Top| Overall Length Metric | 14 mm |
|---|---|
| Cutting Direction | Right |
| Overall Length Inches | 0.5512" |
| Brand | Dormer |
| Material | HSCO |
| Coating/Finish | Bright |
| Thread Size Metric | M12 x 1.75 |
