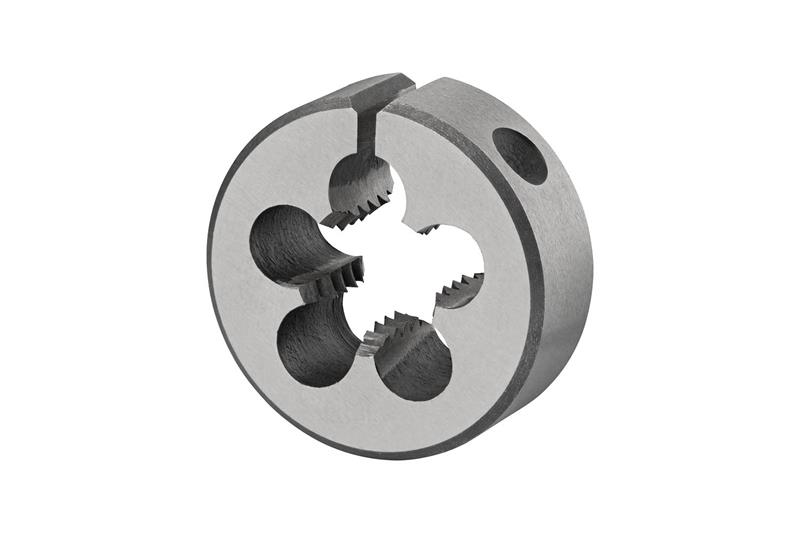

M14 x 1.25 HSS Bright RH Rethreading Hex Die Nut
- Item Code: 5978569
- Brand: Dormer
- Unit Size: 1
Description
Adjustable circular split die, for ISO-Metric Fine thread M14 with 1.25 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1.5/16" outside diameter and 7/16" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Fractional | 7/16" |
|---|---|
| Overall Length Metric | 11.11 mm |
| Thread Size Metric | M14 x 1.25 |
| Brand | Dormer |
| Material | High Speed Steel |
| Overall Length Inches | 0.4375" |
| Coating/Finish | Bright |
| Cutting Direction | Right |
