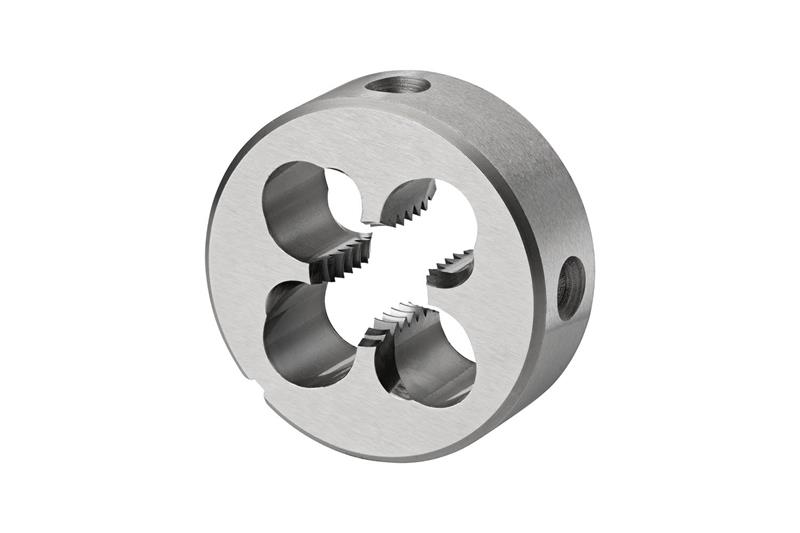

M5 x 0.80 mm Carbide (HSS-E) Bright Finish RH Gun Nosed Die
- Item Code: 5978590
- Brand: Dormer
- Unit Size: 1
Description
Solid round die with a gun nose, for ISO-Metric thread M5 with 0.80 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 7mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron
Tech Specs
Back To Top| Material | HSCO |
|---|---|
| Overall Length Inches | 0.2756" |
| Cutting Direction | Right |
| Brand | Dormer |
| Thread Size Metric | M5 x 0.80 |
| Overall Length Metric | 7 mm |
| Coating/Finish | Bright |
