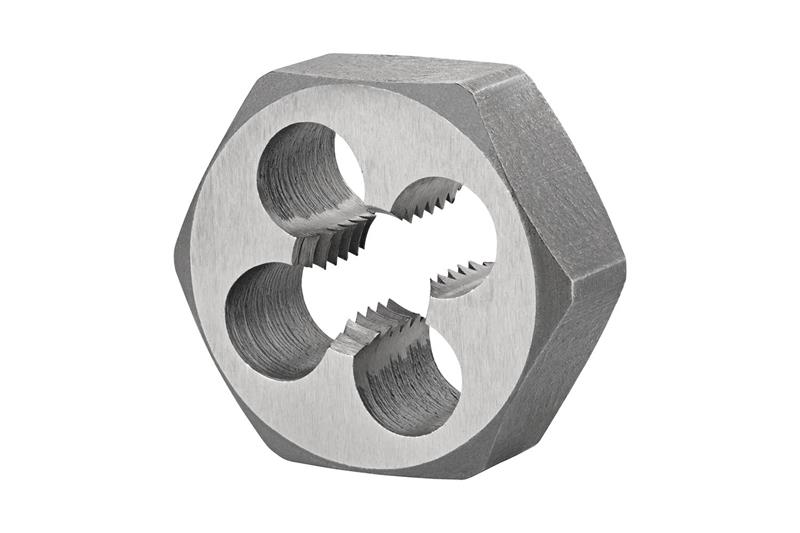

M22 x 2.50 HSS Bright Finish RH Die Nut
- Item Code: 5978694
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric thread M22 with 2.50 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 50mm width across flat and 22mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Material | High Speed Steel |
| Overall Length Inches | 0.8661" |
| Brand | Dormer |
| Overall Length Metric | 22 mm |
| Coating/Finish | Bright |
| Thread Size Metric | M22 x 2.50 |
