M24 x 3.00 HSS Bright Finish RH Die Nut
- Item Code: 5978716
- Brand: Dormer
- Unit Size: 1
Description

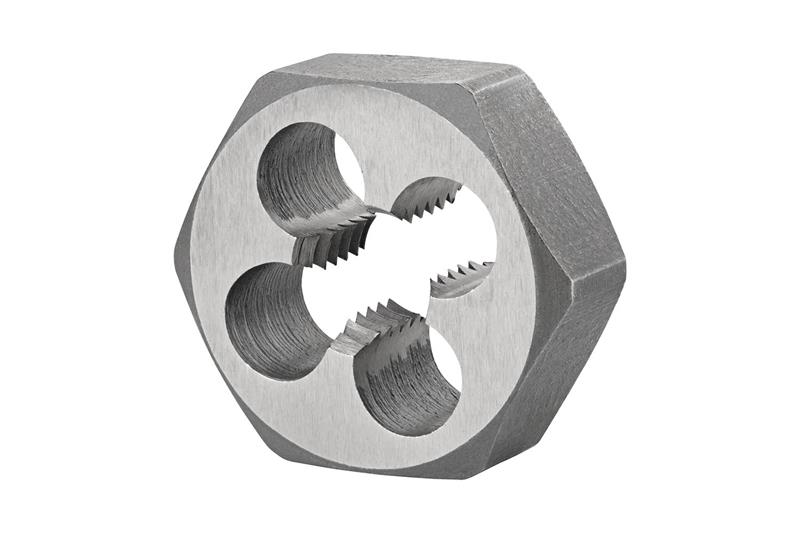

Hexagon die nut, for ISO-Metric thread M24 with 3.00 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 50mm width across flat and 22mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Metric | 22 mm |
|---|---|
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Brand | Dormer |
| Thread Size Metric | M24 x 3.00 |
| Material | High Speed Steel |
| Overall Length Inches | 0.8661" |
