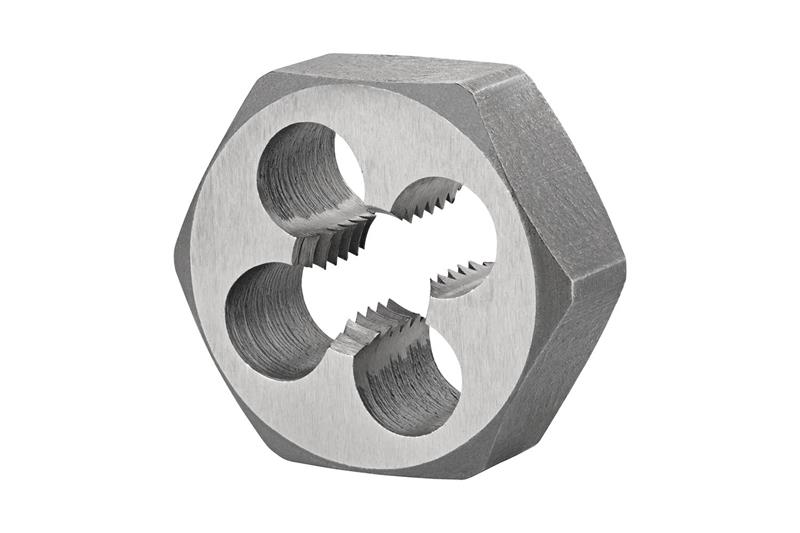

M3 x 0.50 HSS Bright Finish RH Die Nut
- Item Code: 5978773
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric thread M3 with 0.50 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 19mm width across flat and 5mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Thread Size Metric | M3 x 0.50 |
|---|---|
| Material | High Speed Steel |
| Overall Length Inches | 0.1969" |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Metric | 5 mm |
