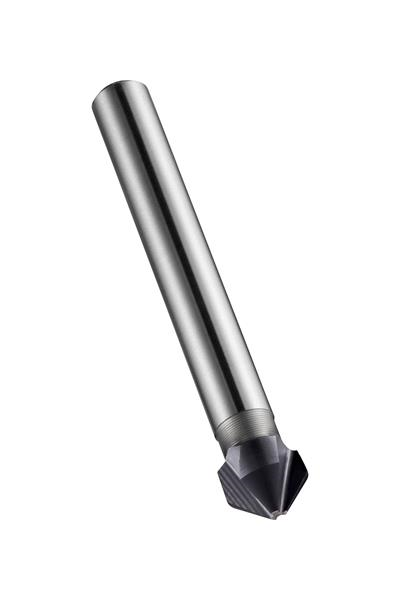

20.50 mm Carbide Bright Finish RH 3 Flute 90 Deg. Single End Countersink
- Item Code: 5979242
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 20.50mm with an overall length of 63mm and a head length of 12.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50mm, solid carbide with standard bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium, copper or copper alloys and polymers, titanium or titanium alloys, chilled, hardened cast-iron
Tech Specs
Back To Top| Shank Style | Cylindrical shank |
|---|---|
| Material | Solid Carbide |
| Metric Diameter | 20.50 mm |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Point Angle | 90 Deg. |
| Overall Length Inches | 2.4803" |
| Overall Length Metric | 63 mm |
