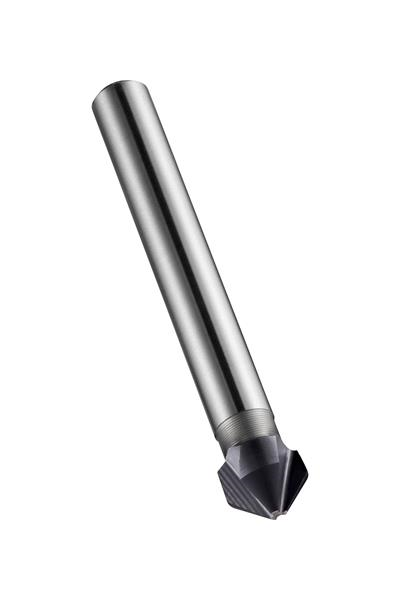

31.00 mm Carbide Bright Finish RH 3 Flute 90 Deg. Single End Countersink
- Item Code: 5979248
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 31.00mm with an overall length of 71mm and a head length of 18mm and 12mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, solid carbide with standard bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium, copper or copper alloys and polymers, titanium or titanium alloys, chilled, hardened cast-iron
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Inches | 2.7953" |
| Point Angle | 90 Deg. |
| Metric Diameter | 31.00 mm |
| Material | Solid Carbide |
| Overall Length Metric | 71 mm |
| Brand | Dormer |
| Shank Style | Cylindrical shank |
