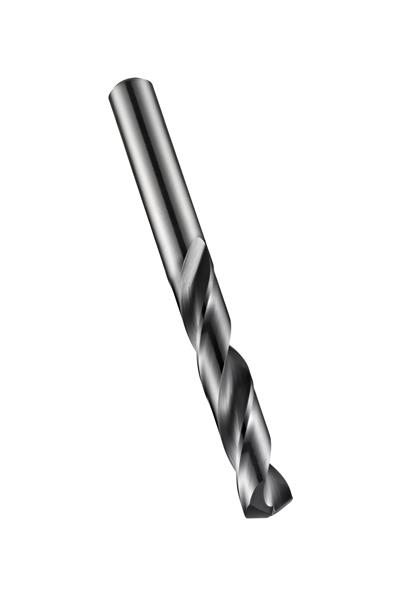

31/64 in. Solid Carbide TiAIN Finish 140 Deg. MP-X Point High Performance Jobber Drill

  • Item Code: 5979898
  • Brand: Dormer
  • Unit Size: 1

Description

R454 high performance Force-X drills will produce good quality and accurate holes (H9 hole tolerance), even when operating at high speeds and feeds. They have a titanium aluminium nitride coating which increases the service life of the drill and improves performance when drilling harder materials, whilst the premium carbide used in manufacture means the drills can be used for drilling steels, aluminium, stainless steelss and other materials. The CTW flute design (Continuously Thinned Web) provides improved strength, allowing the drill to operate at higher cutting speeds and feeds. R454 Force-X drills have a 140 degree, 4-facet split point as an aid to self-centering and to reduce the push force required.

Tech Specs

Back To Top
Metric Diameter 12.30 mm
Brand Dormer
Overall Length Inches 4.8819"
Shank Style Cylindrical shank DIN 6535 HA
Cutting Direction Right
Fractional Diameter 31/64"
Coating/Finish TiAlN
Decimal Diameter 0.4844"
Material Solid Carbide
Overall Length Metric 124 mm
Point Angle 140 Deg.
