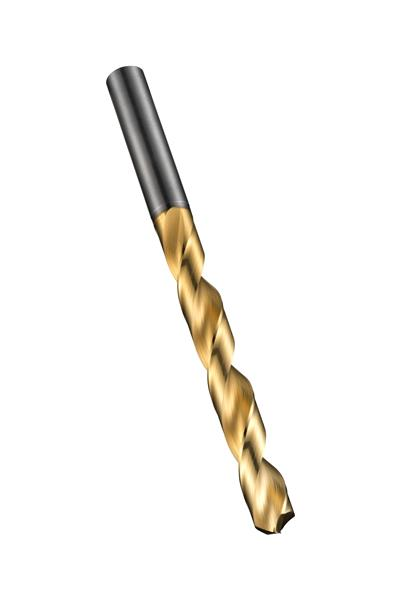

11.50 mm Solid Carbide TiN Finish 130 Deg. CDX Point High Performance Jobber Drill

  • Item Code: 5980431
  • Brand: Dormer
  • Unit Size: 1

Description

R510 ADX jobber drills from Dormer are manufactured from premium carbide and can be used for drilling a number of materials including steels, cast iron and aluminium. With a 130 degree point to help with self-centering and reduce the push force, the drills are capable of producing high quality and accurate holes (H8 hole tolerance) even at high speeds and feeds. With a titanium nitride coating to extend the life of the drill and improve performance when drilling harder materials, R510 carbide drills have a convex cutting edge which helps break chips for easier removal, allowing increased speeds and feeds.

Tech Specs

Back To Top
Metric Diameter 11.50 mm
Cutting Direction Right
Decimal Diameter 0.4528"
Flute Type Standard Spiral
Overall Length Metric 142 mm
Material Solid Carbide
Point Angle 130 Deg.
Brand Dormer
Shank Style Cylindrical shank
Coating/Finish TiN
Overall Length Inches 5.5906"
