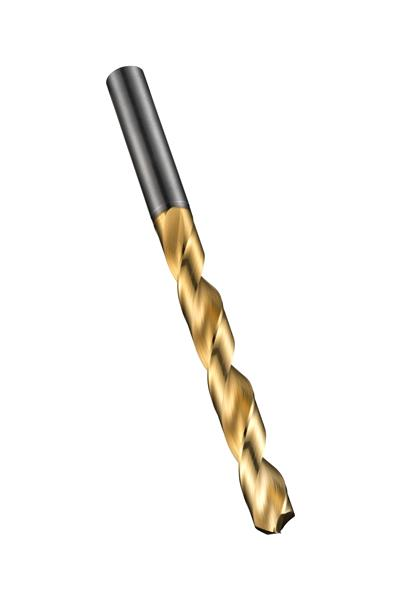

7/16 in. Solid Carbide TiN Finish 130 Deg. CDX Point High Performance Jobber Drill

  • Item Code: 5980500
  • Brand: Dormer
  • Unit Size: 1

Description

R510 ADX jobber drills from Dormer are manufactured from premium carbide and can be used for drilling a number of materials including steels, cast iron and aluminium. With a 130 degree point to help with self-centering and reduce the push force, the drills are capable of producing high quality and accurate holes (H8 hole tolerance) even at high speeds and feeds. With a titanium nitride coating to extend the life of the drill and improve performance when drilling harder materials, R510 carbide drills have a convex cutting edge which helps break chips for easier removal, allowing increased speeds and feeds.

Tech Specs

Back To Top
Decimal Diameter 0.4374"
Brand Dormer
Shank Style Cylindrical shank
Coating/Finish TiN
Point Angle 130 Deg.
Fractional Diameter 7/16"
Material Solid Carbide
Metric Diameter 11.11 mm
Overall Length Inches 5.5906"
Cutting Direction Right
Flute Type Standard Spiral
Overall Length Metric 142 mm
