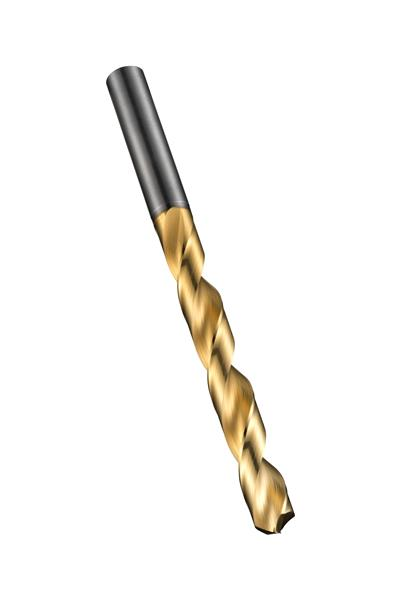

1/8 in. Solid Carbide TiN Finish 130 Deg. CDX Point High Performance Jobber Drill

  • Item Code: 5980502
  • Brand: Dormer
  • Unit Size: 1

Description

R510 ADX jobber drills from Dormer are manufactured from premium carbide and can be used for drilling a number of materials including steels, cast iron and aluminium. With a 130 degree point to help with self-centering and reduce the push force, the drills are capable of producing high quality and accurate holes (H8 hole tolerance) even at high speeds and feeds. With a titanium nitride coating to extend the life of the drill and improve performance when drilling harder materials, R510 carbide drills have a convex cutting edge which helps break chips for easier removal, allowing increased speeds and feeds.

Tech Specs

Back To Top
Cutting Direction Right
Flute Type Standard Spiral
Fractional Diameter 1/8"
Metric Diameter 3.18 mm
Overall Length Inches 2.5591"
Decimal Diameter 0.1252"
Brand Dormer
Material Solid Carbide
Coating/Finish TiN
Overall Length Metric 65 mm
Point Angle 130 Deg.
Shank Style Cylindrical shank
