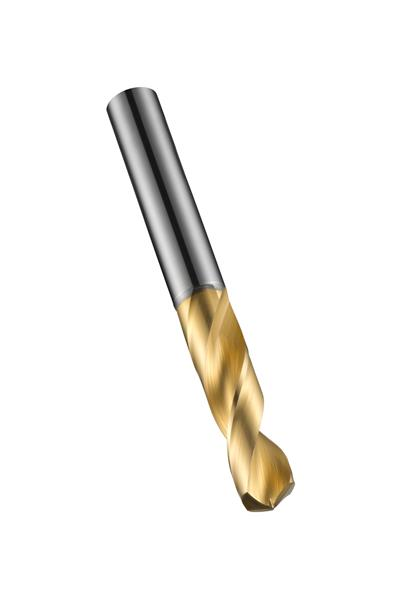

7/16 in. Solid Carbide TiN Finish 130 Deg. CDX Point Screw Machine Drill

  • Item Code: 5981120
  • Brand: Dormer
  • Unit Size: 1

Description

Dormer?s R520 drills are manufactured from premium carbide and are suitable for drilling a variety of materials including steels, aluminium and cast iron. The drills are capable of producing high quality and accurate holes (H8 hole tolerance), even at high speeds and feeds, which are made possible thanks to the convex cutting edges helping break chips for easy removal. With a 130 degree point to help with self-centering and reduce the force needed to drill into the workpiece, R520 solid carbide drills also have a titanium nitride coating which extends the life of the drill and improves performance when drilling harder materials.

Tech Specs

Back To Top
Brand Dormer
Fractional Diameter 7/16"
Metric Size 11.11 mm
Coating/Finish TiN
Decimal Size 0.4374"
Material Solid Carbide
Overall Length Metric 95 mm
Point Angle 130 Deg.
Overall Length Inches 3.7402"
Shank Style Cylindrical shank
Cutting Direction Right
Flute Type Standard Spiral
