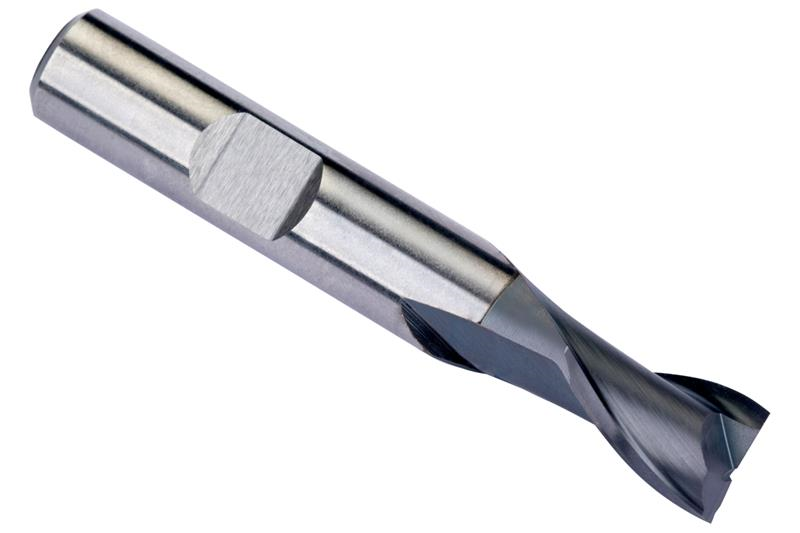

11.00 mm HSS Powder Metallurgy Steel TiCN Finish Slot Drill

  • Item Code: 5983823
  • Brand: Dormer
  • Unit Size: 1

Description

C126 2 flute milling cutters will give you great performance coupled with a long tool life, being manufactured from powder metal High Speed cobalt. They have a titanium carbo nitride coating which further increases the service life of the cutter and gives improved performance when machining hard and abrasive materials. The high rigidity achieved by the short length flute design makes C126 perfect for milling shallow slots, whilst the accurate diameter means they are also perfect for milling standard keyway slots to a P9 tolerance. For effective use in plunging, ramping and profile milling of steels, cast iron and stainless steels, there?s no more versatile cutter than the C126.

Tech Specs

Back To Top
Metric Size 11.00 mm
Coating/Finish TiCN
Number of Flutes 2
Type Slot Drill
Helix Angle 30 Deg.
Material Cobalt
Overall Length Inches 2.7559
Overall Length Metric 70 mm
Shank Style Weldon shank DIN 1835B
Brand Dormer
Decimal Size 0.4331"
