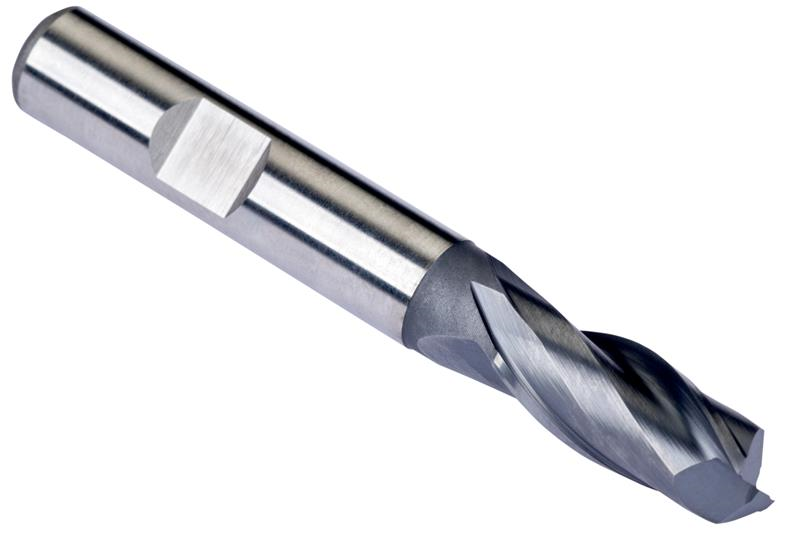

6.50 mm HSS Powder Metallurgy Steel TiCN Finish Slot Drill
- Item Code: 5984031
- Brand: Dormer
- Unit Size: 1
Description
Dormer?s C139 milling cutters have a medium flute length for high rigidity when milling standard slots and an accurate diameter which means standard keyway slots can be milled to a P9 tolerance. They are manufactured from powder metal High Speed cobalt which means longer tool life and better performance. Couple this with the titanium carbo nitride coating which further improves tool life and gives great performance when threading hard and abrasive materials and you have a very versatile tool, capable of ramping, plunging and profile milling in steels, stainless steels and cast iron.
Tech Specs
Back To Top| Material | Cobalt |
|---|---|
| Coating/Finish | TiCN |
| Number of Flutes | 2 |
| Overall Length Metric | 66 mm |
| Brand | Dormer |
| Decimal Size | 0.2559" |
| Type | Slot Drill |
| Helix Angle | 30 Deg. |
| Metric Size | 6.5 mm |
| Shank Style | Weldon shank DIN 1835B |
| Overall Length Inches | 2.5984 |
