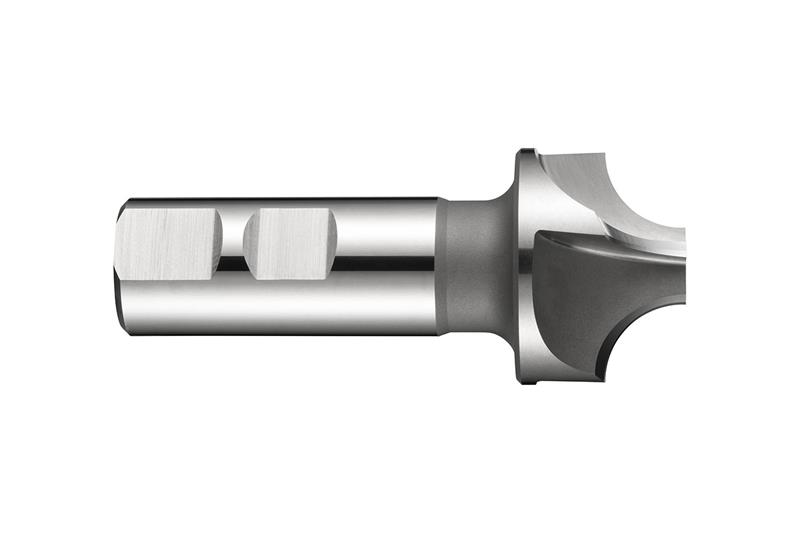

10.00 mm x 1.00 mm Radius Cobalt (HSS-E) Bright Finish RH Type N Extra Short Corner Rounding Cutter
- Item Code: 5985388
- Brand: Dormer
- Unit Size: 1
Description
C700 milling cutters are radius corner rounding cutters, with an accurate ground radius capable of profile milling metric corner radii around the perimeter of components. The High Speed cobalt used in manufacture provides excellent tool strength, performance and wear resistance whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool for a clean and accurate result. For stable holding to improve radius surface finish there is a Weldon Shank, manufactured to conform to the German Institute for Standardization. C700 milling cutters can be used for corner radius milling in steels, stainless steels, aluminium and cast iron.
Tech Specs
Back To Top| Type of Cutter | Corner Rounding Cutter |
|---|---|
| Material | HSS Cobalt |
| Overall Length Inches | 2.3622" |
| Shank Style | Weldon shank DIN 1835B |
| Brand | Dormer |
| Overall Length Metric | 60 mm |
| Number of Flutes | 4 |
| Coating/Finish | Bright |
