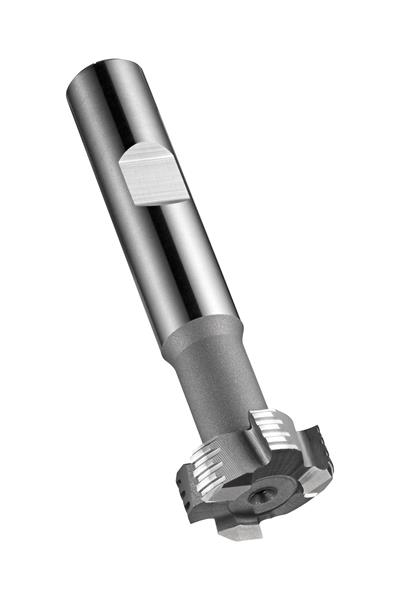

25 mm Cobalt (HSS-E) Bright Finish 8 Teeth Type N T-Slot Cutter
- Item Code: 5985507
- Brand: Dormer
- Unit Size: 1
Description
Dormer?s C800 T-slot milling cutter is suitable for milling T-slots in aluminium, stainless steels, steels and cast iron. For accurate and stable holding in all types of tool holder, the C800 has a combination shank and is capable of milling T-slots to accept standard T-bolts. The C800 is manufactured from High Speed cobalt for great wear resistance, performance and tool strength, whilst the bright finish prevents workpiece material from adhering to the cutting edges of the tool, so you get a clean and accurate result.
Tech Specs
Back To Top| Overall Length Inches | 3.2283" |
|---|---|
| Overall Length Metric | 82 mm |
| Cutting Width | 11 mm |
| Decimal Diameter | 0.9843" |
| Helix Angle | 15 Deg. |
| Coating/Finish | Bright |
| Type of Cutter | T-slot Cutter |
| Material | Cobalt |
| Metric Diameter | 25.00 mm |
| Number of Flutes | 8 |
| Shank Style | Cylindrical shank DIN 1835 B / D |
| Brand | Dormer |
