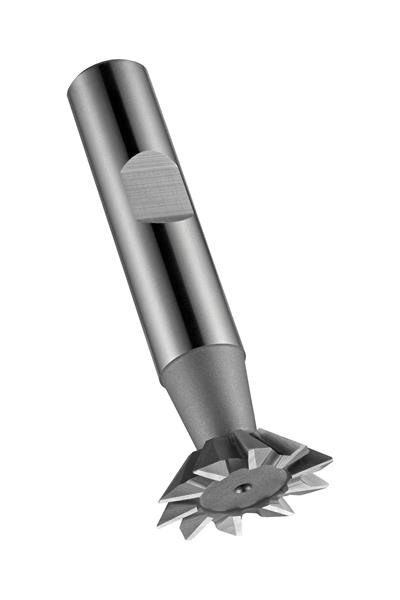

16.00 mm x 6.30 mm Wide Cobalt (HSS-E) Bright Finish 45 Deg. Included Angle 10 Teeth Type N Dovetail Cutter
- Item Code: 5985796
- Brand: Dormer
- Unit Size: 1
Description
C830 dovetail slot cutters from Dormer are manufactured from High Speed cobalt, providing great wear resistance and performance plus excellent tool strength. With a Weldon shank for accurate and stable holding, the optional 45 or 60 degree angles are ideal for milling common dovetail slots. With a bright finish to stop workpiece material from sticking to the cutting edges of the tool for a clean and accurate result, C830 cutters can be used for milling dovetail forms in cast iron, steels, stainless steels and aluminium.
Tech Specs
Back To Top| Type of Cutter | Dovetail Cutter |
|---|---|
| Shank Style | Weldon shank DIN 1835B |
| Material | Cobalt |
| Number of Teeth | 10 |
| Coating/Finish | Bright |
| Decimal Cutting Diameter | 0.6299" |
| Overall Length Inches | 2.3622" |
| Brand | Dormer |
| Metric Cutting Diameter | 16.00 mm |
| Overall Length Metric | 60 mm |
