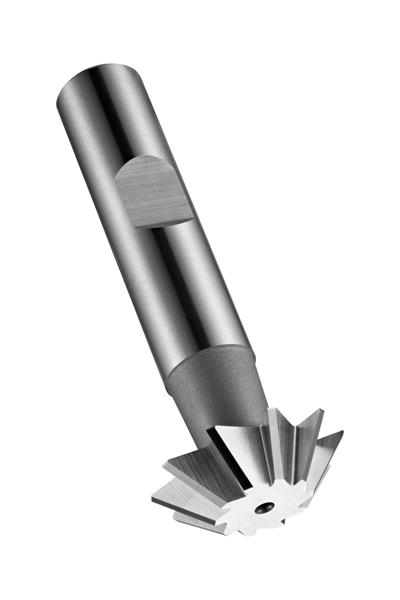

32.00 mm x 12.50 mm Wide Cobalt (HSS-E) Bright Finish 45 Deg. Included Angle 12 Teeth Type N Dovetail Cutter
- Item Code: 5985828
- Brand: Dormer
- Unit Size: 1
Description
C830 dovetail slot cutters from Dormer are manufactured from High Speed cobalt, providing great wear resistance and performance plus excellent tool strength. With a Weldon shank for accurate and stable holding, the optional 45 or 60 degree angles are ideal for milling common dovetail slots. With a bright finish to stop workpiece material from sticking to the cutting edges of the tool for a clean and accurate result, C830 cutters can be used for milling dovetail forms in cast iron, steels, stainless steels and aluminium.
Tech Specs
Back To Top| Decimal Cutting Diameter | 1.2598" |
|---|---|
| Brand | Dormer |
| Material | Cobalt |
| Shank Style | Weldon shank DIN 1835B |
| Overall Length Metric | 71 mm |
| Metric Cutting Diameter | 32.00 mm |
| Coating/Finish | Bright |
| Type of Cutter | Dovetail Cutter |
| Overall Length Inches | 2.7953" |
| Number of Teeth | 12 |
