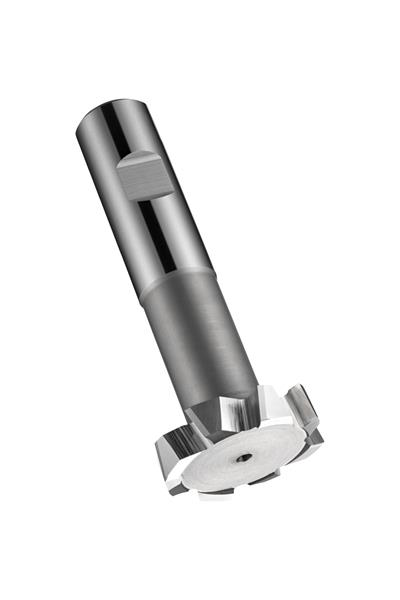

4.50 mm x 1.00 mm Wide Cobalt (HSS-E) Bright Finish 10 Deg. Cutting Angle Shank Type N Connection Staggered Tooth Type N N Woodruff Keyseat Cutter

  • Item Code: 5986015
  • Brand: Dormer
  • Unit Size: 1

Description

C822 Woodruff cutters from Dormer are very versatile tools and can be used for milling woodruff keys in steels, stainless steels, cast irons and aluminium. They are manufactured from High Speed cobalt to give great performance coupled with excellent tool strength and wear resistance. The bright finish means you will get clean accurate results by preventing workpiece material from sticking to the cutting edges of the tool whilst the combination shank provides stable and accurate holding in all types of holders. C822 Woodruff cutters are manufactured to a Dormer Pramet standard and are suitable for milling Woodruff keys in spindles and shafts.

Tech Specs

Back To Top
Metric Diameter 4.50 mm
Shank Style Cylindrical shank DIN 1835 B / D
Brand Dormer
Helix Angle 10 Deg.
Overall Length Metric 50 mm
Overall Length Inches 1.9685"
Coating/Finish Bright
Material Cobalt
Number of Flutes 6
Type of Cutter Woodruff Cutter
Decimal Diameter 0.1772"
