9.50 mm Cobalt (HSS-E) Bright Finish Straight Shank B+ Flute Type Centesimal Cylindrical Machine Chucking Reamer
- Item Code: 5986685
- Brand: Dormer
- Unit Size: 1
Description

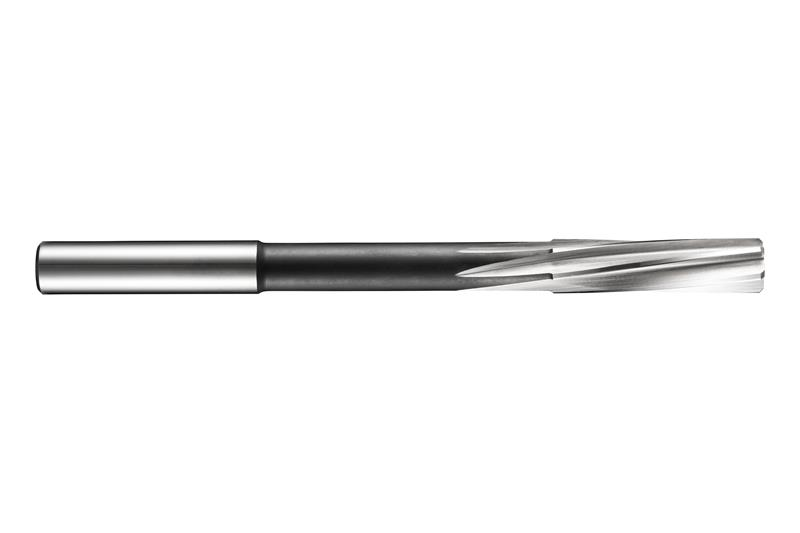

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 9.50mm with an overall length of 125mm, a flute length of 36mm and 81mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 9.5J7, 9.5J8, 9.5JS7, 9.5JS8 or 9.5JS9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Decimal Diameter | 0.3740" |
|---|---|
| Metric Diameter | 9.50 mm |
| Overall Length Metric | 125.00 mm |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Material | Cobalt |
| Overall Length Decimal | 4.9213" |
