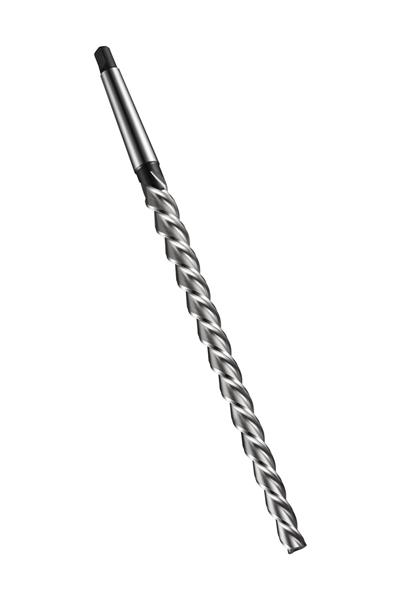

25.00 mm Cobalt (HSS-E) Bright Finish #2 Morse Taper Shank RH Conical Machine Taper Pin Reamer
- Item Code: 5986707
- Brand: Dormer
- Unit Size: 1
Description
Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 24.70mm with an overall length of 427mm, a flute length of 300mm and 30.70mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 25.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Inches | 16.811" |
|---|---|
| Overall Length Metric | 427 mm |
| Material | HSS Cobalt |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Shank Style | Morse Taper Shank |
