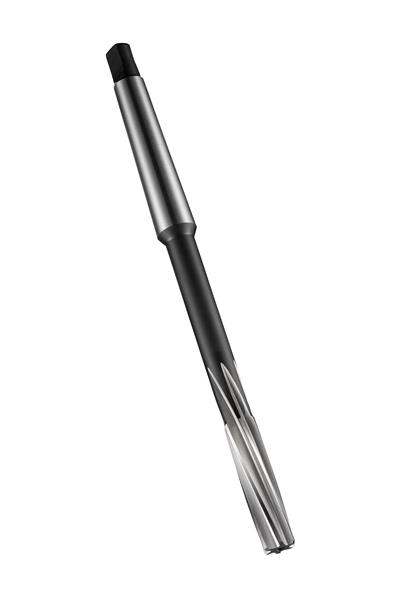

15.00 mm Cobalt (HSS-E) Bright Finish #4 Morse Taper Shank B+ Flute Type Cylindrical Machine Chucking Reamer
- Item Code: 5986779
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 15.00mm with an overall length of 204mm, a flute length of 50mm and 124mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Metric | 204.00 mm |
|---|---|
| Overall Length Decimal | 8.0315" |
| Cutting Direction | Right |
| Material | Cobalt |
| Metric Diameter | 15.00 mm |
| Decimal Diameter | 0.5906" |
| Brand | Dormer |
| Number of Flutes | 8 |
| Shank Style | Morse Taper Shank |
| Coating/Finish | Bright |
