2.99 mm Cobalt (HSS-E) Bright Finish Straight Shank B+ Flute Type Centesimal Cylindrical Machine Chucking Reamer
- Item Code: 5986836
- Brand: Dormer
- Unit Size: 1
Description

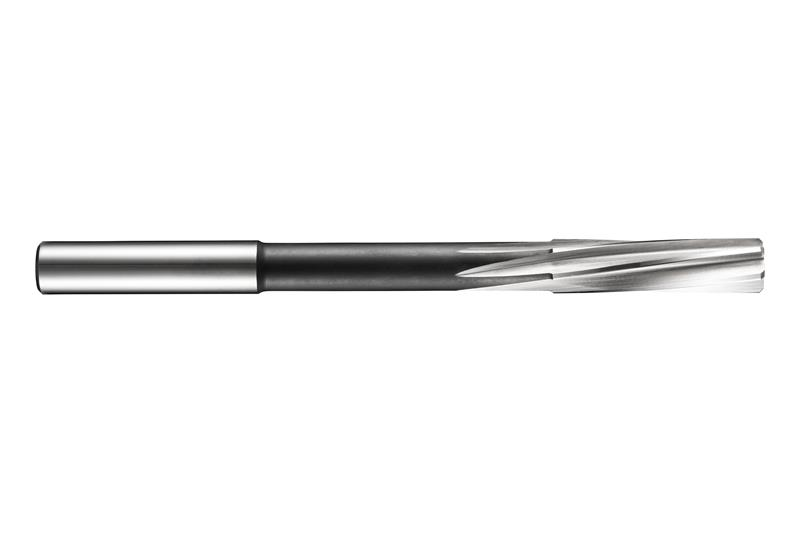

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.99mm with an overall length of 61mm, a flute length of 15mm and 32mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 3N7, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Decimal Diameter | 0.1177" |
|---|---|
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Material | Cobalt |
| Overall Length Metric | 61.00 mm |
| Coating/Finish | Bright |
| Metric Diameter | 2.99 mm |
| Overall Length Decimal | 2.4016" |
| Number of Flutes | 6 |
| Cutting Direction | Right |
