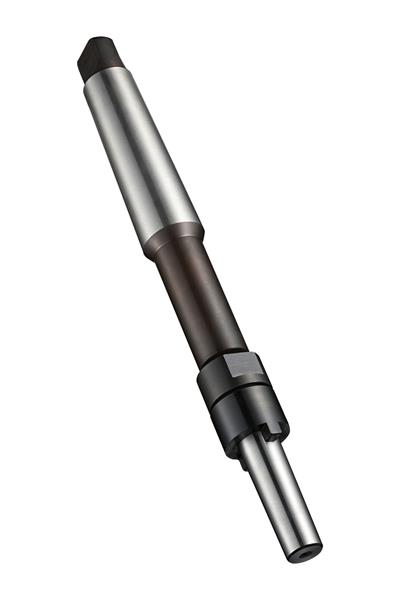

10.00 mm Cobalt (HSS-E) Bright Finish #2 Morse Taper Shank RH Conical Machine Taper Pin Reamer
- Item Code: 5986859
- Brand: Dormer
- Unit Size: 1
Description
Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 9.90mm with an overall length of 257mm, a flute length of 175mm and 13.40mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 10.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Inches | 10.1181" |
|---|---|
| Overall Length Metric | 257 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Shank Style | Morse Taper Shank |
| Coating/Finish | Bright |
| Brand | Dormer |
| Material | HSS Cobalt |
