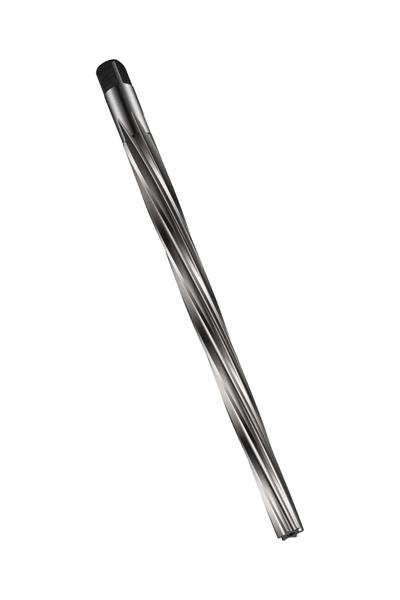

1.20 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986902
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 1.10mm with an overall length of 50mm, a flute length of 32mm and 1.74mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 1.20mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Decimal | 1.9685" |
|---|---|
| Small End Diameter | 1.10 mm |
| Taper Pin Size | 1.20 mm |
| Brand | Dormer |
| Coating/Finish | Bright |
| Shank Style | Cylindrical shank with Square |
| Overall Length Metric | 50.00 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Material | High Speed Steel |
