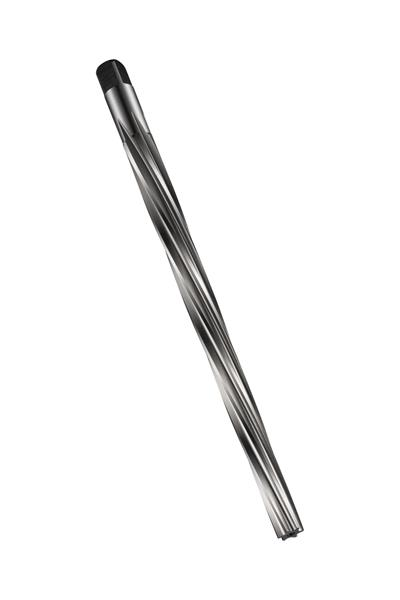

1.50 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986905
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 1.40mm with an overall length of 57mm, a flute length of 37mm and 2.14mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 1.50mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Small End Diameter | 1.40 mm |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Coating/Finish | Bright |
| Overall Length Metric | 57.00 mm |
| Brand | Dormer |
| Overall Length Decimal | 2.2441" |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank with Square |
| Taper Pin Size | 1.50 mm |
