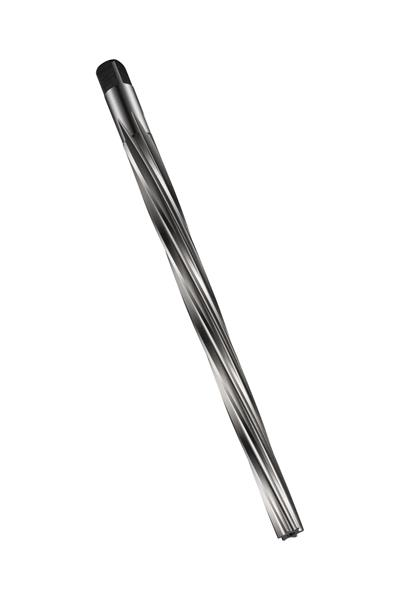

10.00 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986908
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 9.90mm with an overall length of 215mm, a flute length of 175mm and 13.40mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 10.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Small End Diameter | 9.90 mm |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Shank Style | Cylindrical shank with Square |
| Taper Pin Size | 10.00 mm |
| Material | High Speed Steel |
| Overall Length Decimal | 8.4646" |
| Brand | Dormer |
| Overall Length Metric | 215.00 mm |
| Coating/Finish | Bright |
