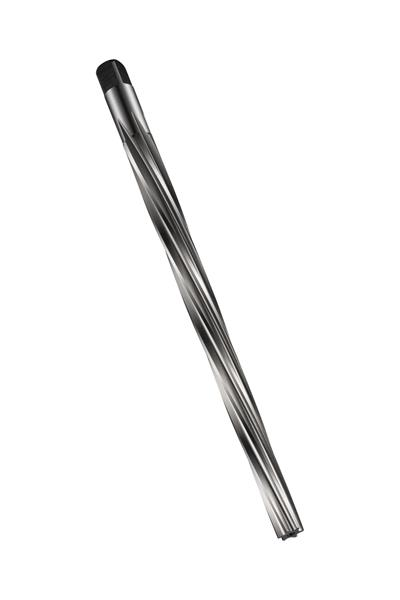

2.50 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986928
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 2.40mm with an overall length of 68mm, a flute length of 48mm and 3.36mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 2.50mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Small End Diameter | 2.40 mm |
| Number of Flutes | 4 |
| Taper Pin Size | 2.50 mm |
| Coating/Finish | Bright |
| Overall Length Metric | 68.00 mm |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
| Overall Length Decimal | 2.6772" |
| Material | High Speed Steel |
