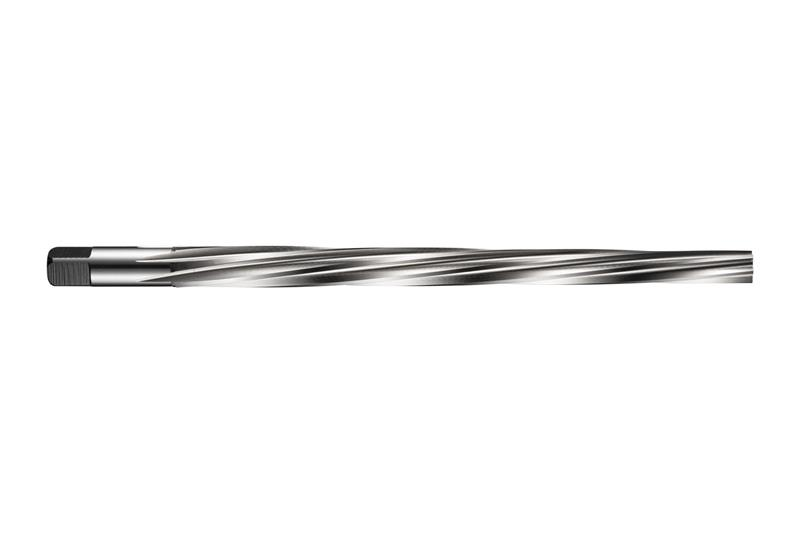

20.00 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986931
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 19.80mm with an overall length of 310mm, a flute length of 250mm and 24.80mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 20.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Metric | 310.00 mm |
|---|---|
| Small End Diameter | 19.80 mm |
| Taper Pin Size | 20.00 mm |
| Brand | Dormer |
| Number of Flutes | 8 |
| Shank Style | Cylindrical shank with Square |
| Material | High Speed Steel |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Decimal | 12.2047" |
